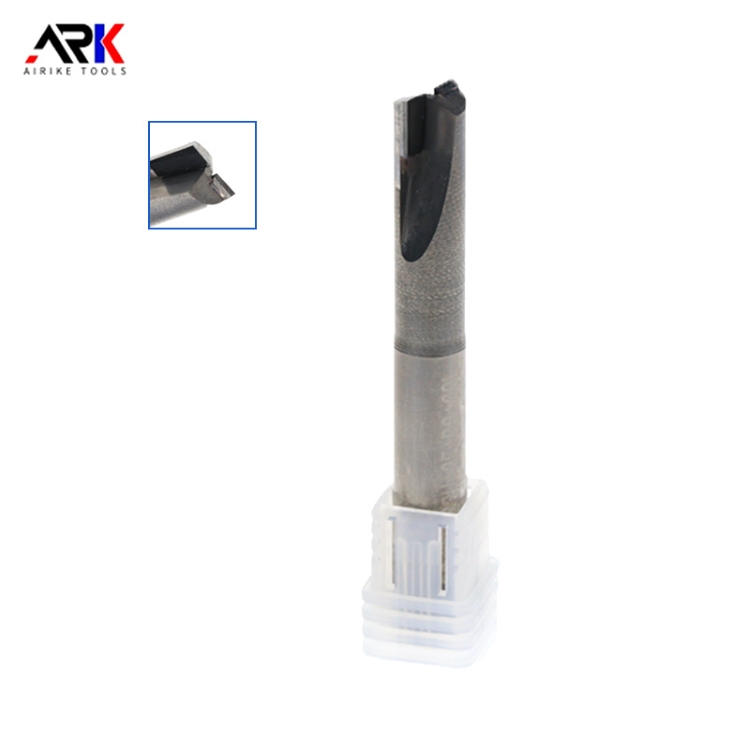

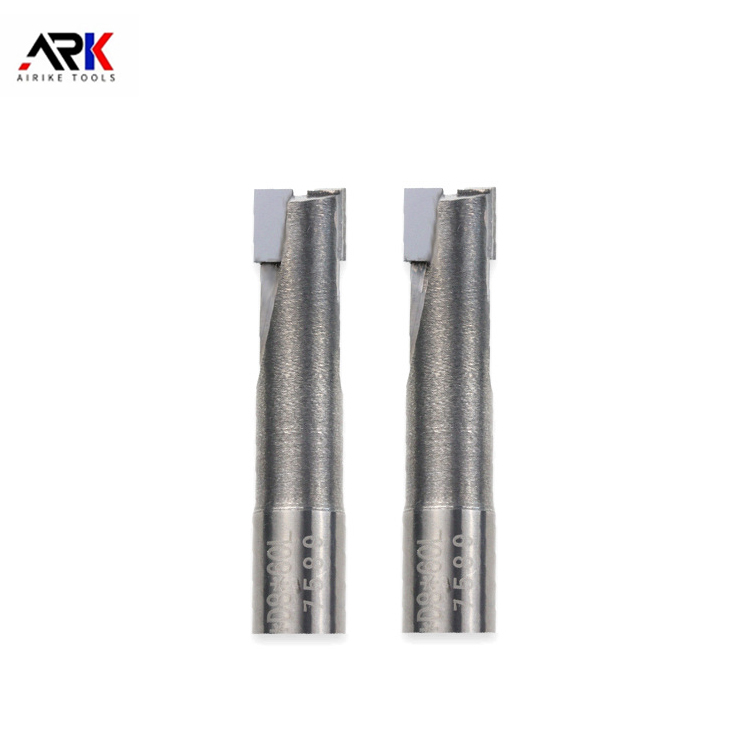

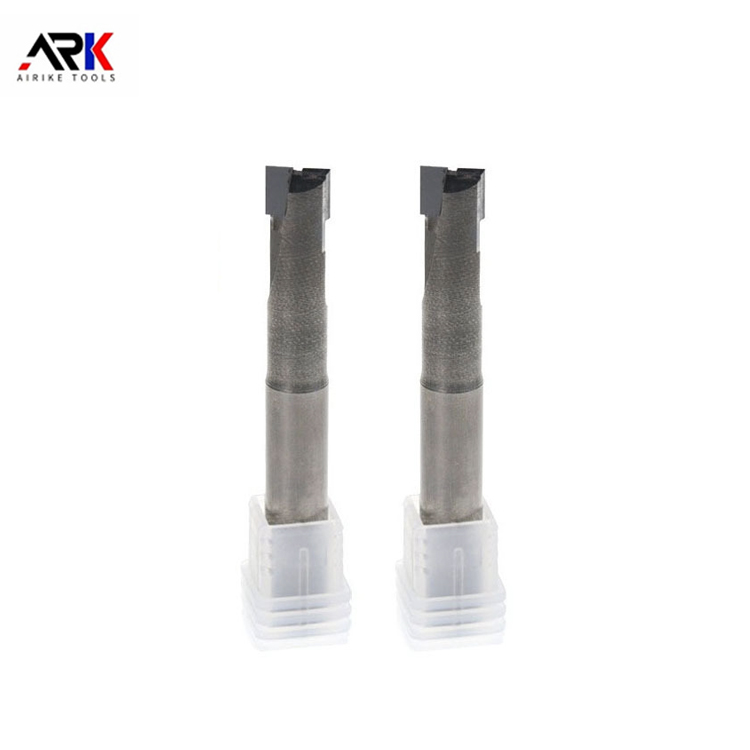

PCD Double-Edged Straight-Edge High-Gloss Cutter
Model:D8*D6*8H*70L
The PCD Double-Edged Straight-Edge High-Gloss Cutter, launched by the Chinese manufacturer Zhongyeda, is a bottom-milling cutter made from diamond material. It features high hardness and wear resistance, a low coefficient of friction, high grinding efficiency, long service life, high machining precision, and fast cutting speeds, offering excellent value for money. Customization based on drawings or samples is available.
Length(cm):
8Width(cm):
6Height(cm):
8Volume(ml):
384Weight(g):
100
Zhongyeda’s PCD Double-Edged Straight-Edge High-Gloss Cutter leverages the technical expertise of the Airike brand, which has deep roots in the cutting tool industry. Designed specifically for high-gloss precision machining applications, it utilizes premium PCD (polycrystalline diamond) material, offering high hardness, exceptional wear resistance, and a long service life, effectively addressing the issue of high consumable costs for businesses.
Key Features of Airike Milling Cutters
- Improved Cutting Efficiency
- Smooth cut surfaces, eliminating burrs
- Wide flute design ensures smooth chip evacuation
- Non-stick properties prevent tool breakage
FAQ
What makes the material superior?
Made from high-quality PCD (polycrystalline diamond), it offers exceptional hardness and wear resistance, far surpassing standard tungsten steel tools, resulting in significantly extended service life.
Tool Design Highlights
The symmetrical double-edge design, combined with straight-edge cutting edges, ensures smooth and stable cutting without chipping or burrs, easily achieving high-gloss cuts on materials such as acrylic, plexiglass, aluminum alloy, and quartz stone.
Is it widely applicable?
Compatible with various machining centers, it is used for high-gloss machining of acrylic, PCD, aluminum, copper, and other materials. With secure clamping, outstanding precision, and user-friendly operation, it consistently delivers high-quality results for both mass production and precision customization.
Product Attributes
Brand
AIRIKE
Specification
D8D68H*70L
Shank Material
Tungsten Steel
Insert Material
Diamond
Overall Length
70
Cutting Edge Length
60
Category
PCD End Mill
Tip Angle
90
Shank Length
80
Shank Diameter
6
Pieces Per Set
1
Application
Acrylic, PCD, Aluminum, Copper, etc. for High-gloss Machining
About Zhongyeda
Our team provides full-cycle service and guarantees after-sales support for any quality issues. We are dedicated to creating a solution that perfectly meets your needs. Enjoy special discounts for bulk orders of milling cutters. We help businesses improve machining efficiency and product quality, empowering production upgrades.
We look forward to hearing from you.
Hot Tags: PCD Double-Edged Straight-Edge High-Gloss Cutter
