Round Nose Milling Cutter

Round Nose Milling Cutter: The Robust “All-Purpose Transition Tool” for Rough and Finish Milling.

Why Choose Our Round Nose Milling Cutters?

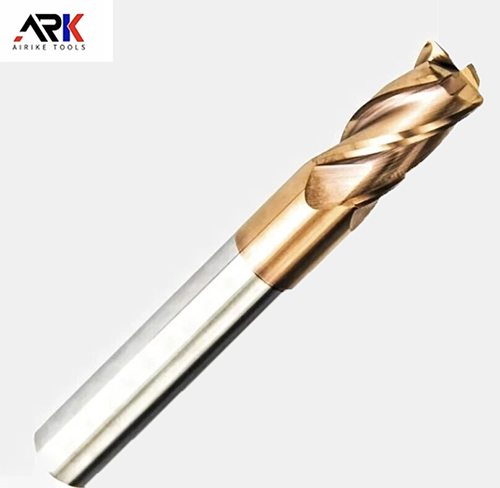

Round nose milling cutters (also known as bullnose cutters) are highly efficient cutting tools widely used in mechanical processing. Their key feature is the curved transition at the cutting edge, combining the cutting stability of flat-bottom cutters with the surface adaptation capability of ball-nose cutters. This makes them versatile tools suitable for both roughing and finishing operations.

Crafted from premium cemented carbide or high-speed steel and precision-ground, the tool boasts sharp, wear-resistant edges that minimize cutting resistance and reduce surface roughness. The curved edge design disperses cutting stress to prevent chipping while minimizing burrs during machining, enhancing workpiece quality.

What are its key features?

Zhongyeda's round nose end mills feature a micro-radius (R0.2-R5mm) at the cutting edge tip. They combine the cutting efficiency of flat-bottomed tools with the impact resistance of ball-nose cutters, offering a cost-effective solution for “rough milling allowance + finish milling for smooth surfaces.” They are particularly suited for “one-pass” requirements in mold machining.

Where are they used?

• Integrated roughing and finishing in mold machining: For cavity machining of H13 steel die-casting molds, R1mm round nose cutters can continuously perform roughing (2mm depth of cut) and finishing (0.1mm depth of cut), reducing tool changes.

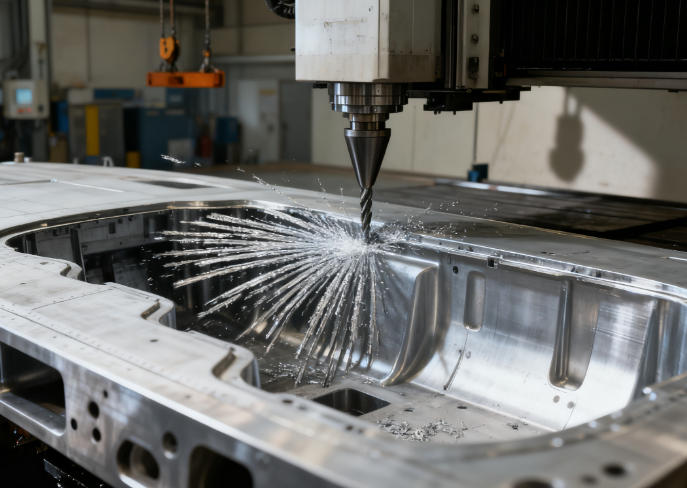

• Deep cavity/groove machining: For milling deep cavities in aerospace structural components, the rounded tip disperses cutting forces to prevent tool jamming;

• Semi-finishing of high-hardness materials: When machining hardened steel parts (HRC 50-55), the rounded nose tool delivers 3x longer tool life than flat-bottomed tools and 2x higher efficiency than ball-nose tools.

Any case studies?

A mold manufacturer machining large injection molds replaced the “rough milling with flat-bottom cutters + finishing with ball-nose cutters” combination with R2mm round-nose cutters. This reduced processing time per mold set from 8 hours to 5 hours while cutting tooling costs by 30%.

Key Considerations

• Select large-radius (R3-R5mm) round nose cutters for roughing to withstand impact, and small-radius (R0.2-R0.5mm) cutters for finishing to maintain precision.

• Never use small-radius round nose cutters for deep grooves, as they are prone to chip clogging and edge chipping.
