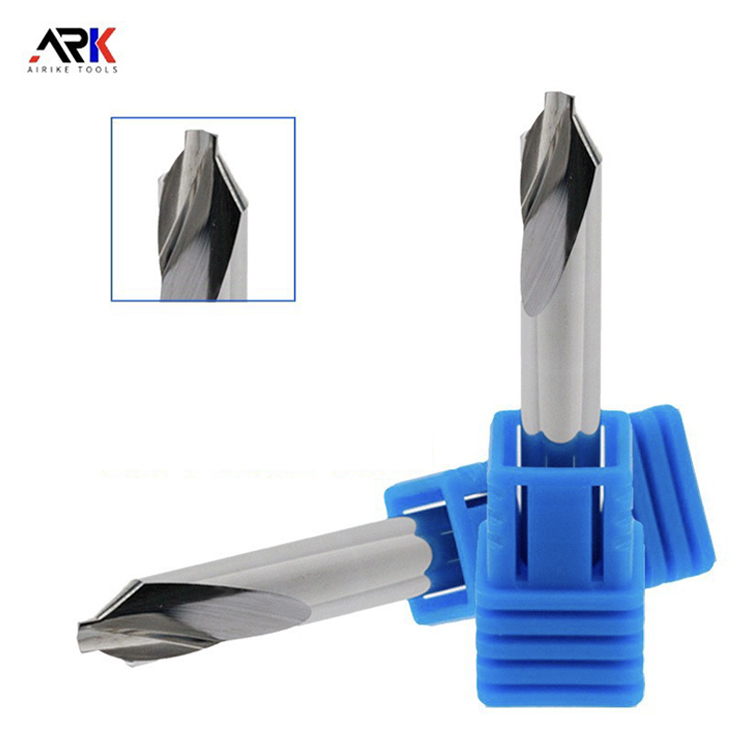

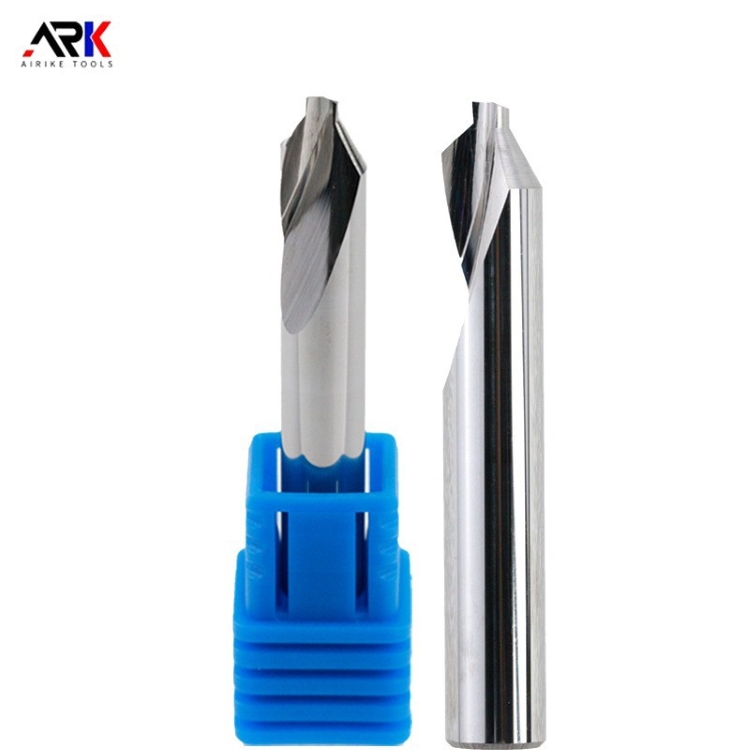

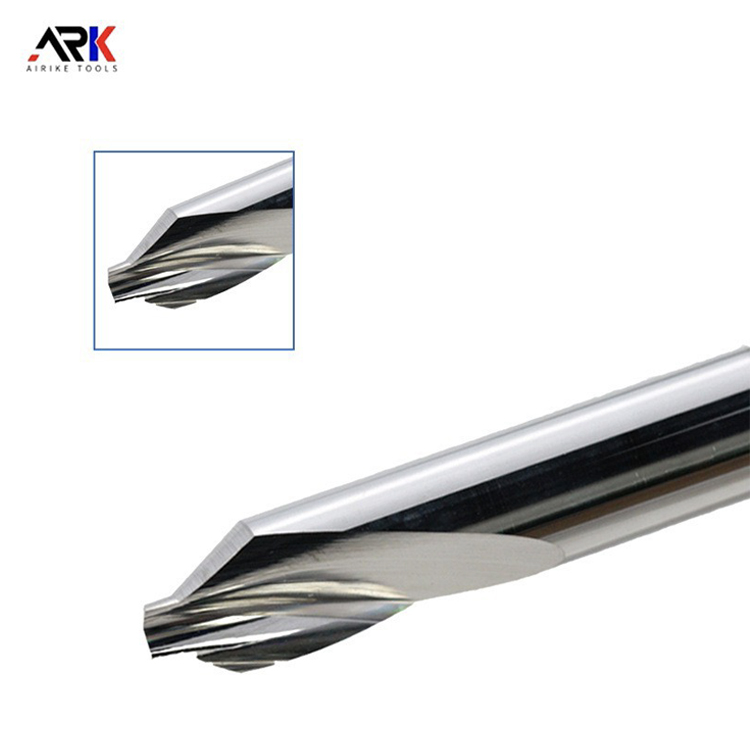

Single-Flute Spiral End Milling Cutter
Model:2.5x1.3X45°X6D
Zhongyeda Single-flute spiral end milling cutter, made of tungsten steel, ensures smooth chip evacuation and burr-free cutting. Its straight shank design is compatible with various machining centers, making it the tool of choice for high-efficiency, precision machining. Ample stock is available, and we support both sample and bulk purchases.
Length(cm):
20Width(cm):
20Height(cm):
50Volume(ml):
20000Weight(g):
100
Zhongyeda’s Single-flute spiral end milling cutter is primarily used for precision machining of plastics, aluminum alloys, acrylic mirror panels, carbon fiber, aluminum-plastic composite panels, copper plates, fiberglass panels, and aluminum-based PCBs. We offer fast shipping from stock and support customization to help businesses improve machining efficiency and finished product quality!
Technical Highlights
Capable of precision machining of mobile phone plastic casings, panels, and lens molding.
Our Advantages
Years of production experience,support to sample custom service, to meet you demand.
Sufficient supply, accurate supply,fast delivery, so that you can quickly receive goods.
We have a perfect customer service team,to provide you with complete one-stop service.
Product Details & Specifications
- Product Attributes
|
Brand |
AIRIKE |
Suitable Materials |
Woodworking/Acrylic/PVC/MDF |
|
Tool Structure |
End Mill |
Cutting Edge Length |
1.3 |
|
Country/Region of Origin |
China |
Shank Connection |
Straight Shank |
|
Place of Origin |
Shenzhen |
Minimum Cutting Diameter |
2.5D |
|
Applicable Machine Tools |
Machining Center |
Tool Diameter |
2.5D |
|
Clamping Diameter |
6D |
Cutting Diameter |
2.5D |
|
Is it imported? |
No |
Shank Diameter |
6D |
- Product Specifications
|
Specification |
2.5x1.3X45°X6D |
||
|
Cutting Edge Length |
1.3 |
Cutting Hardness |
HRC60 |
|
Cutting Diameter |
2.5 |
Corner Radius |
1.0mm |
|
Cutting Type |
Right-hand Tool |
Insert Shape |
Round |
|
Max Cutting Depth |
1.3 |
Effective Working Length |
1.3 |
|
Rotation Direction |
Clockwise |
Cutting Direction |
Climb Milling |
|
Number of Flutes/Grooves |
1 |
Order No. |
2.5x1.3X45°X6D |
|
2.5x1.3X45°X6D |
Tungsten Carbide |
Insert Hardness |
Tungsten Carbide |
|
Cutting Angle |
45° |
Product Feature |
Durable |
|
Number of Teeth |
1 |
Coating Material |
Uncoated |
Contact customer service for custom solutions.
