Zhongyeda - What's the Difference Between Chamfering Tools and Centering Drills?

In machining, chamfering tools and centering drills are commonly used cutting tools, yet many beginners often confuse them. While their functions appear related, they differ significantly in design purpose, structure, and application. Understanding these distinctions can lead to smoother machining operations.

I. Core Functionality Differs

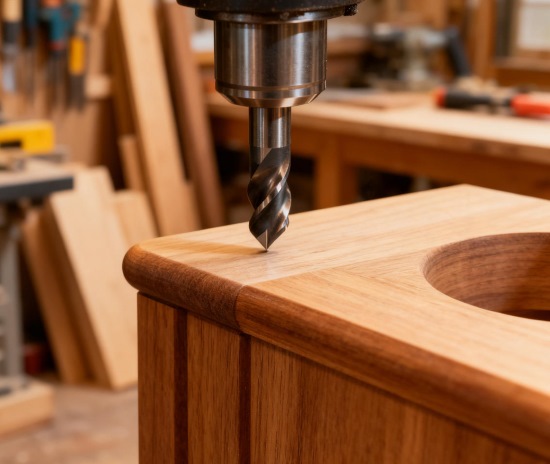

The chamfering tool's primary role is to process workpiece edges. By creating a beveled surface, it removes burrs, smooths edges, facilitates subsequent assembly, and enhances edge stability during use. The center drill, however, focuses on positioning. It creates a conical recess on the workpiece surface before drilling, providing a stable starting point for the drill bit and reducing the likelihood of drill deviation.

II. Distinct Geometric Structures

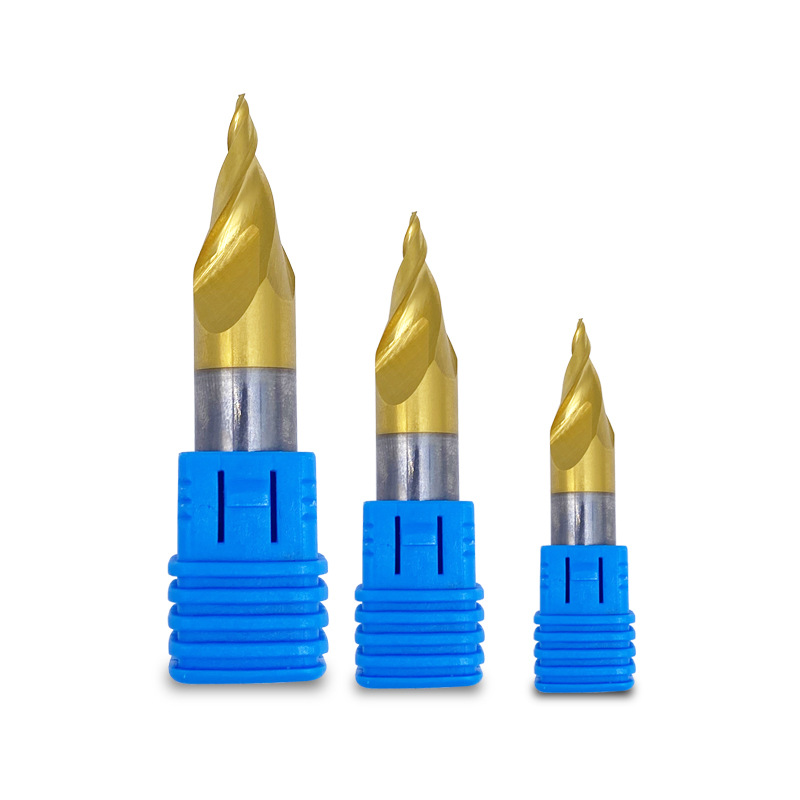

Chamfering tools typically feature multiple cutting edges distributed across a tapered surface, ensuring smoother cutting and cleaner chamfered surfaces. Common tip angles cater to diverse requirements. Center drills resemble miniature twist drills, often with two main cutting edges and a cross-edge. Their sharp tips facilitate rapid penetration into the workpiece to establish a positioning point.

III. Different Application Scenarios and Processes

Chamfering tools are primarily used after hole or contour machining as auxiliary or finishing operations. They can process along various paths, not limited to hole openings. Center drills must be used before formal drilling as a preparatory step, mainly for axial drilling at fixed points. They are particularly suitable for drilling preparation in hard materials or inclined surfaces.

Summary for you

Chamfering tools focus on edge finishing, while center drills emphasize drilling positioning. Each serves distinct roles in the machining process. Correctly distinguishing and selecting them effectively enhances machining quality and efficiency—a fundamental and crucial skill in mechanical processing. Only by rationally combining them according to machining steps and requirements can each process achieve optimal results.
