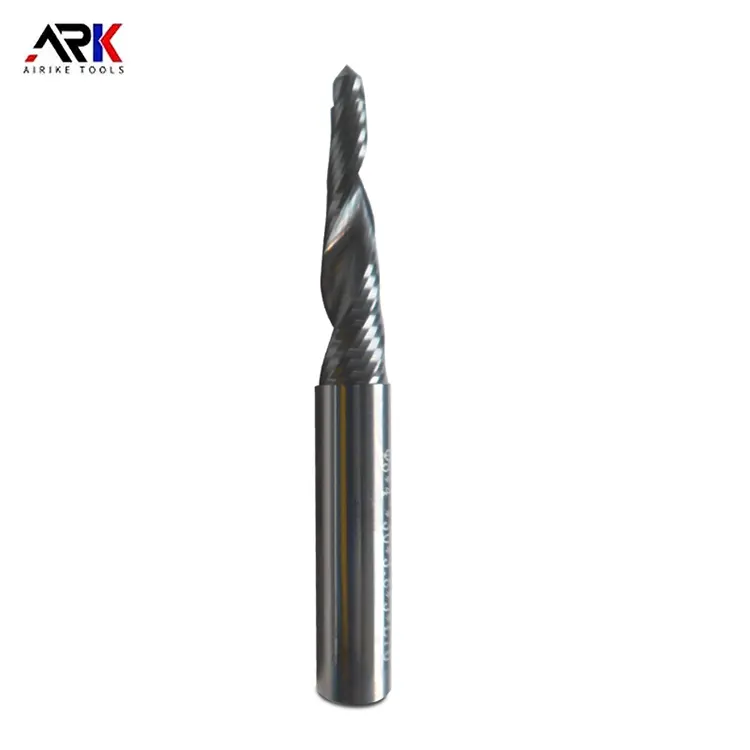

Single-Edge Taper Milling Cutter

Zhongyeda is a factory specializing in the production of high-quality Single-Edge Taper Milling Cutter. As a professional cutting tool designed for high-precision and high-efficiency processing, Single-Edge Taper Milling Cutter plays a vital role in mold manufacturing, aerospace, automotive parts and other fields. This milling cutter combines advanced material science with precision manufacturing technology to provide users with an unparalleled processing experience.

The core advantage of the Single-Edge Taper Milling Cutter lies in its unique taper design. This design not only enables the milling cutter to remain stable and reduce vibration during processing, but also makes the cutting force distribution more even, thereby extending the service life of the tool. At the same time, the taper design also enhances the chip removal ability of the milling cutter, effectively avoids the problem of clogging during the cutting process, and improves processing efficiency.

In terms of material, the Single-Edge Taper Milling Cutter uses high-quality high-speed steel or carbide materials to ensure the high hardness and wear resistance of the tool. This enables the milling cutter to maintain the sharpness of the cutting edge while rotating at high speed, and easily cope with the cutting needs of materials of various hardness.

In addition, the Single-Edge Taper Milling Cutter also has excellent cutting performance and processing accuracy. Its sharp cutting edge can quickly cut into the material, reduce cutting resistance, and improve cutting efficiency. At the same time, the precision manufacturing of the tool ensures that the surface finish of the processed workpiece is high and the dimensional accuracy is high, meeting the user's pursuit of high-quality products.

In practical applications, the Single-Edge Taper Milling Cutter demonstrates its wide applicability. Whether it is cutting complex shapes such as slots, holes, and contours, or high-precision mold processing, this milling cutter can provide users with satisfactory solutions with its excellent performance and stable processing quality.

Product Features

1. High-precision processing: Precision design, can achieve high-precision bevel, cone milling and hole bottom chamfering at high-speed rotation, meet tasks with extremely high detail requirements, and ensure that the processed workpiece meets strict size and quality standards.

2. Low cutting resistance: Single-edge design, the contact area with the material is relatively small during the processing, and the cutting force is low, which reduces the pressure and deformation of the workpiece, making the processing process smoother, especially suitable for processing materials that are sensitive to deformation.

3. Smooth chip removal: Usually a special groove design is adopted, such as a spiral groove, which can quickly discharge the chips during the cutting process to avoid the accumulation of chips between the tool and the workpiece, reduce the wear of the tool, and ensure the smooth progress of the cutting process, which is conducive to improving the quality of the processing surface.

4. High wear resistance: Generally, high-quality tool materials such as cemented carbide are selected, which have high hardness and wear resistance, can maintain good edge sharpness during long-term cutting work, reduce the frequency of tool replacement, and reduce processing costs.

5. Good versatility: It is suitable for the processing of a variety of materials, including wood, plastic, metal, acrylic, etc., with a wide range of material adaptability, which can meet the diversified processing needs of different users.

Type and Specifications

1. Type: Single-Edge Taper Milling Cutter has different degrees of taper milling cutters, such as the common 10°, 20°, 30°, etc., to meet the processing needs of bevels and cones at different angles; from the shape of the cutter head, in addition to the ordinary taper cutter head, there are also ball-end taper milling cutters, which can be used for complex shape processing combining curved surfaces and cones.

2. Specifications: The tool diameter usually has a variety of options such as 3, 6, 8, 10, 12, and the length also has different sizes, such as 75mm, 100mm, 150mm, etc. In addition, parameters such as taper length and blade length are also different. Users can choose the appropriate specifications according to factors such as the working range of the engraving machine, the thickness of the processing material, the engraving accuracy and speed requirements.

Application Fields

1. Advertising Logo Production: Single-Edge Taper Milling Cutter is often used to make acrylic logos, mini-letter logos, advertising luminous characters, etc. It can accurately carve various shapes and fonts, giving the logo a refined appearance and good visual effects.

2. Model making: In the production of architectural models, mechanical models, electronic product models, etc., it can be used to process the inclined surface, conical surface and other structures of the model to improve the accuracy and realism of the model.

3. Mold processing: It can be used to perform bevel milling, conical surface milling and hole bottom chamfering on the mold to ensure the dimensional accuracy and surface quality of the mold, which helps to improve the service life and molding effect of the mold.

4. Home decoration: It can be used to carve patterns and patterns on furniture and decorations. Through the processing of the taper milling cutter, it can create a unique three-dimensional effect and add an artistic atmosphere to home decoration.

5. Crafts production: In the production of wood carvings, stone carvings, jade carvings and other crafts, Single-Edge Taper Milling Cutter can help craftsmen carve various exquisite details and shapes to realize complex design ideas.

Precautions for use

1. Tool installation: When installing the Single-Edge Taper Milling Cutter, ensure that the tool is firmly installed to avoid loosening during high-speed rotation, which may affect the processing accuracy or even cause safety accidents.

2. Cutting parameter setting: According to the nature of the processing material, the specifications of the tool and the performance of the machine tool, reasonably set the parameters such as cutting speed, feed speed and cutting depth to give full play to the performance of the tool while avoiding excessive wear or damage to the tool.

3. Tool maintenance: After using the Single-Edge Taper Milling Cutter, clean the chips and debris on the tool in time, and apply an appropriate amount of anti-rust oil to prevent the tool from rusting. Check and sharpen the tool regularly to maintain the sharpness and accuracy of the tool.
